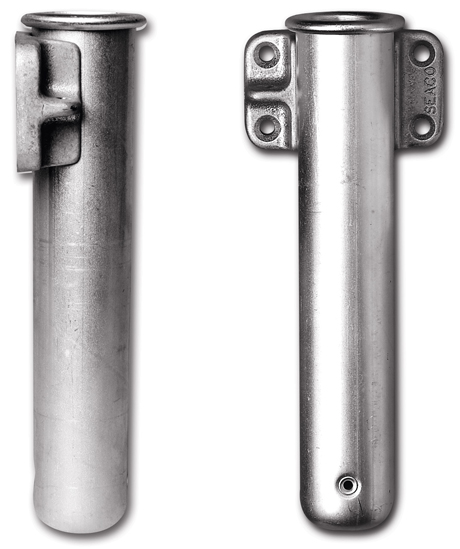

Side Mount Cast Base 90 degree Rod Holders

Designed specifically for gunwale mounting on narrow decked boats. These Rod Holders stand straight and are predominantly used around the transom area for bait board spigots, barbecues etc.

The mount is cast marine grade aluminium, welded to aluminium tube.

The mount includes a drilled lug for the attachment of a safety clip for tackle.

Ordering Code: SM90 - Packaged 1 per pack

6mm Rod Lock Pin.
Length to pin 8â€ or 210 mm.
Inside diameter 1-3/4â€ or 44 mm.
Fastening holes 4 x 6.5 mm c/s for bolts, screws, rivets or monobolts.

Suggested fastenings 4 x 1/4â€ c/s m/s 4 x 14 gauge, s/s self tapping screws or 1/4â€ pop rivets or monobolts.
Pre-packed fastenings also available.
Available in polished alloy finish.
